ADI公司的ADE9153A是帶mSure?自動校準的高度準確單相電能計量集成電路，集成了三個高性能模數(shù)轉換器（ADC），信噪比（SNR）88dB，支持有功能源標準IEC 62053-21，IEC 62053-22， EN50470-3， OIML R46和ANSI C12.20;支持無功能源標準IEC 62053-23 和IEC 62053-24，器件工作電壓3.3V，主要用在單相電表，能量和功率測量，街道照明，智能電源分布系統(tǒng)和機器健康。本文介紹了ADE9153A1主要特性，典型應用電路和測試電路以及評估板EV-ADE9153ASHIELDZ主要特性和電路圖。

The ADE9153A1 is a highly accurate， single-phase， energy metering IC with autocalibration. The mSure? autocalibration feature allows a meter to automatically calibrate the current and voltage channels without using an accurate source or an accurate reference meter when a shunt resistor is used as a current sensor. Class 1 and Class 2 meters are supported by mSureautocalibration. The ADE9153A incorporates three high performance analog- to-digital converters （ADCs）， providing an 88 dB signal-to-noise ratio （SNR）。 The ADE9153A offers an advanced metrology feature set of measurements like line voltage and current， active energy， fundamental reactive energy， and apparent energy calculations， and current and voltage rms calculations. ADE9153A includes power quality measurements such as zero crossing detection， line period calculation， angle measurement， dip and swell， peak and overcurrent detection， and power factor measurements. Each input channel supports independent and flexible gain stages. Current Channel A is ideal for shunts， having a flexible gain stage and providing full-scale input ranges from 62.5 mV peak down to 26.04 mV peak. Current Channel B has gain stages of 1×， 2×， and 4× for use with current transformers （CTs）。 A high speed， 10 MHz， serial peripheral interface （SPI） port allows access to the ADE9153A registers. Note that throughout this data sheet， multifunction pins， such as ZX/DREADY/CF2， are referred to either by the entire pin name or by a single function of the pin， for example， CF2， when only that function is relevant. The ADE9153A operates from a 3.3 V supply and is available in a 32-lead LFCSP package.

ADE9153A1主要特性：

mSureautocalibration

Automatic calibration based on a direct measurement of the full signal path

Calibration procedure not requiring a reference meter

mSureautocalibration Class 1 meter guaranteed

3 high performance ADCs

88 dB SNR

High gain current channel： ±26.04 mV peak， 18.4 mV rms input at highest gain setting

Advanced metrology feature set

WATT， VAR， VA， Wh， VARh， and VAh

Supports active energy standards： IEC 62053-21; IEC 62053-22; EN50470-3; OIML R46; and ANSI C12.20

Supports reactive energy standards： IEC 62053-23 and IEC 62053-24

Current and voltage rms measurement

Power quality measurements

Operating temperature， industrial range： ?40℃ to +85℃

ADE9153A1應用：

Single-phase energy meters

Energy and power measurement

Street lighting

Smart power distribution system

Machine health

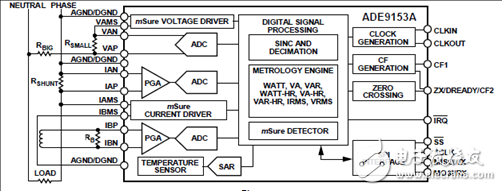

圖1.ADE9153A1典型應用電路

圖2. ADE9153A1測試電路

評估板EV-ADE9153ASHIELDZ

The EV-ADE9153ASHIELDZ is an Arduino shield compatible with Arduino Uno， Arduino Zero， or ESP8266. The shield has an on-board shunt resistor for line current measurement and enables quick evaluation and prototyping of energy measurement systems that use the ADE9153A. Arduino library and application examples are provided on the ADE9153A product page to simplify implementation of larger systems. Using mSure? autocalibration， the shield can be calibrated to measure energy with 1% accuracy over the dynamic range without the need for expensive calibration equipment.

評估板EV-ADE9153ASHIELDZ主要特性：

Arduino-compatible， single-phase energy measurement shield with the ADE9153A

Onboard shunt for line current measurement

Nominal current： 5 A

Maximum current： 10 A

Up to 240 V rms nominal line neutral voltage measurement

Arduino software library mSureautocalibration and example application sketches

圖3.評估板EV-ADE9153ASHIELDZ連接圖

圖4.評估板EV-ADE9153ASHIELDZ電路圖
