TI公司的AM6548是具有TSN使能的用于工業4.0 工業級Sitara處理器，提供先進工業通信，增強安全性，高度可靠性和安全特性。處理器組合兩個四個或兩個ARM Cortex－A53和和兩個Cortex－R5F MCU子系統， 四核Arm? Cortex?－A53 MCU工作頻率高達1.1GHz，雙核Arm Cortex－R5F MCU工作頻率高達400MHz，具有三個吉比特工業通信子系統（PRU_ICSSG），兩個10/100/1000以太網端口per PRU_ICSSG，支持兩個SGMII端口，和10/100Mb PRU-ICSS兼容，有24x PWM per PRU_ICSSG，可以逐個周期控制，主要用在工業可編控制器（PLC），帶安全功能的工廠自動化，多協議現場總線通信，工業PC，工業機器人，人機接口，電網基礎設備保護繼電器和機器人馬達驅動器。本文介紹了AM654x和AM652x主要特性，功能框圖，以及TMDX654GPEVM AM65x 評估模塊（EVM）系統外形圖和處理器板電路圖，材料清單和PCB設計圖。

AM654x and AM652x Sitara Arm applications processors are built to meet the complex processing needs of modern industrial embedded products.

The AM654x and AM652x devices combine four or two Arm Cortex-A53 cores with a dual Cortex-R5F MCU subsystem which includes features intended to help customers achieve their functional safety goals for their end products and three Gigabit industrial communications subsystems （PRU_ICSSG） to create a SoC capable of high-performance industrial controls with industrial connectivity and processing for functional safety applications. AM65xx is currently undergoing assessment to be certified by TüV SüD

according to IEC 61508.

The four A53 cores are arranged in two dual-core clusters with shared L2 memory to create two processing channels. Extensive ECC is included on on-chip memory， peripherals， and interconnect for reliability. The SoC as a whole includes features intended to help customers design systems that can achieve their functional safety goals （assessment pending with TüV SüD）。 Cryptographic acceleration and secure boot are available on AM654x and AM652x devices in addition to granular firewalls managed by the DMSC.

Programmability is provided by the quad-core Arm Cortex-A53 RISC CPUs with Neon extension， and the dual Cortex-R5F MCU subsystem is available for general purpose use as two cores or it can be used in lockstep to help meet the needs of functional safety applications. The PRU_ICSSG subsystems can be used to provide up to six ports of industrial Ethernet such as Profinet IRT， TSN， or EtherCAT? （among many others）， or they can be used for standard Gigabit Ethernet connectivity.

TI provides a complete set of software and development tools for the Arm cores including Processor SDK Linux-RT， RTOS， and Android as well as C compilers and a debugging interface for visibility into source code execution. Applicable safety documentation will be made available to assist customers in developing their functional safety related systems.

AM654x和AM652x主要特性：

1Processor Cores：

? Quad-Core Arm? Cortex?-A53 Microprocessor Subsystem at up to 1.1 GHz

– Two Dual-Core Cortex-A53 Clusters with 512KB L2 Cache Including SECDED

– Each A53 Core has 32KB L1 ICache and 32K L1 DCache

? Dual-Core Arm Cortex-R5F at up to 400 MHz

– Supports Lockstep Mode

– 16KB ICache， 16KB DCache， and 64KB RAM per R5F Core

Industrial Subsystem：

? Three Gigabit Industrial Communication Subsystems （PRU_ICSSG）

– Two 10/100/1000 Ethernet Ports per PRU_ICSSG

– Supports Two SGMII Ports （2）

– Compatibility with 10/100Mb PRU-ICSS

– 24× PWMs per PRU_ICSSG

– Cycle-by-Cycle Control

– Enhanced Trip Control

– 18× Sigma-Delta Filters per PRU_ICSSG

– Short Circuit Logic

– Over-Current Logic

– 6× Multi-protocol Position Encoder Interfaces per PRU_ICSSG

Memory Subsystem：

? Up to 2MB of On-Chip L3 RAM with SECDED

? Multi-Core Shared Memory Controller （MSMC）

– Up to 2MB （2 banks × 1MB） SRAM with SECDED

– Shared Coherent Level 2 or Level 3 Memory-Mapped SRAM

– Shared Coherent Level 3 Cache

– 256-Bit Processor Port Bus and 40-Bit Physical Address Bus

– Coherent Unified Bi-Directional Interfaces to Connect to Processors or Device Masters

– L2， L3 Cache Pre-Warming and Post Flushing

– Bandwidth Management with Starvation Bound

– One Infrastructure Master Interface

– Single External Memory Master Interface

– Supports Distributed Virtual System

– Supports Internal DMA Engine – DRU （Data Routing Unit）

– ECC Error Protection

? DDR Subsystem （DDRSS）

– Supports DDR3L/DDR4 Memory Types up to DDR-1600

– Supports LPDDR4 Memory Type up to DDR-1333

– 32-Bit Data Bus and 7-Bit SECDED Bus

– 32GB of Total Addressable Space

? General-Purpose Memory Controller （GPMC）

Safety：

? AM65xx Helps System Designers Address Safety Requirements

– The Dual Cortex-R5F System is Undergoing Assessment to be Certified at TüV SüD

According to IEC 61508， Targeting SIL-3

– The A53 Cores and Entire System on Chip （SoC） is Undergoing Assessment to be Certified at TüV SüD According to IEC 61508， Targeting SIL-2

– ECC or Parity on Calculation-Critical Memories

– ECC and Parity on Internal Bus Interconnect

– Firewalls to Help Provide Freedom From Interference （FFI）

– Built-In Self-Test （BIST） for CPU， High-End Timers， and On-Chip RAM

– Hardware Error Injection Support for Test-for- Diagnostics

– Error Signaling Modules （ESM） for Capture of Safety Related Errors

– Voltage， Temperature， and Clock Monitoring

– Windowed and Non-Windowed Watchdog Timers in Multiple Clock Domains

? MCU Island

– Isolation of the Dual-Core Arm Cortex-R5F Microprocessor Subsystem to Help Provide

Freedom From Interference （FFI）

– Separate Voltage， Clocks， Resets， and Dedicated Peripherals

– Internal MCSPI Connection to the Rest of SoC

Security：

? Secure Boot Supported

– Hardware-Enforced Root-of-Trust

– Support to Switch Root-of-Trust via Backup Key

– Support for Takeover Protection， IP Protection， and Anti-Roll Back Protection

? Cryptographic Acceleration Supported

– Session-Aware Cryptographic Engine with Ability to Auto-Switch Key-Material Based on

Incoming Data Stream

– Supports Cryptographic Cores

– AES – 128/192/256 Bits Key Sizes

– 3DES – 56/112/168 Bits Key Sizes

– MD5， SHA1

– SHA2 – 224/256/384/512

– DRBG with True Random Number Generator

– PKA （Public Key Accelerator） to Assist in RSA/ECC Processing

– DMA Support

? Debugging Security

– Secure Software Controlled Debug Access

– Security Aware Debugging

? Trusted Execution Environment （TEE） Supported

– Arm TrustZone? Based TEE

– Extensive Firewall Support for Isolation

– Secure DMA Path and Interconnect

– Secure Watchdog/Timer/IPC

? Secure Storage Support

? On-the-Fly Encryption and Authentication Support for OSPI Interface

? Networking Security Support for Data （Payload） Encryption/Authentication via Packet Based Hardware Cryptographic Engine

? Security Co-Processor （DMSC） for Key and Security Management， with Dedicated Device Level Interconnect for Security

SoC Services：

? Device Management Security Controller （DMSC）

– Centralized SoC System Controller

– Manages System Services Including Initial Boot， Security， Safety and Clock/Reset/Power Management

– Power Management Controller for Active and Low Power Modes

– Communication with Various Processing Units over Message Manager

– Simplified Interface for Optimizing Unused Peripherals

– Tracing and Debugging Capability

? Sixteen 32-Bit General-Purpose Timers

? Two Data Movement and Control Navigator Subsystems （NAVSS）

– Ring Accelerator （RA）

– Unified DMA （UDMA）

– Up to 2 Timer Managers （TM） （1024 Timers Each）

Multimedia：

? Display Subsystem

– Two Fully Input-Mapped Overlay Managers Associated with Two Display Outputs

– One Port MIPI? DPI Parallel Interface

– One Port OLDI

? Graphics Processing Unit （GPU）

? One Camera Serial Interface-2 （MIPI CSI-2）

? One Port Video Capture： BT.656/1120 （No Embedded Sync）

High-Speed Interfaces：

? One Gigabit Ethernet （CPSW） Interface Supporting

– RMII （10/100） or RGMII （10/100/1000）

– IEEE1588 （2008 Annex D， Annex E， Annex F） with 802.1AS PTP

– Audio/Video Bridging （P802.1Qav/D6.0）

– Energy-Efficient Ethernet （802.3az）

– Jumbo Frames （2024 bytes）

– Clause 45 MDIO PHY Management

? Two PCI-Express? Revision 3.1 Subsystems （2）

– Supports Gen3 （8.0GT/s） Operation

– Two Independent 1-lane， or a Single 2-lane Port

– Support for Concurrent Root-Complex and/or End-Point Operation

? USB 3.1 Dual-Role Device Subsystem （2）

– One Enhanced SuperSpeed Gen1 Port

– One USB 2.0 Port

– Each Port Independently Configurable as USB Host， USB Peripheral， or USB Dual-Role Device

General Connectivity：

? 6× Inter-Integrated Circuit （I2C） Ports

? 5× Configurable UART/IrDA/CIR Modules

? Two Simultaneous Flash Interfaces Configured

– Two OSPI? Flash Interfaces

– or Hyperbus? and OSPI1 Flash Interface

? 2× 12-Bit Analog-to-Digital Converters （ADC）

– Up to 4 Msamples/s

– Eight Multiplexed Analog Inputs

? 8× Multichannel Serial Peripheral Interfaces （MCSPI） Controllers

– Two with Internal Connections

– Six with External Interfaces

? General-Purpose I/O （GPIO） Pins

Control Interfaces：

? 6× Enhanced High Resolution Pulse-Width Modulator （EHRPWM） Modules

? One Enhanced Capture （eCAP） Module

? 3× Enhanced Quadrature Encoder Pulse （eQEP） Modules

Automotive Interfaces：

? 2× Modular Controller Area Network （MCAN） Modules with Full CAN-FD Support

Audio Interfaces：

? 3× Multichannel Audio Serial Port （MCASP） Modules

Media and Data Storage：

? 2× MultiMedia Card/Secure Digital （MMC/SD） Interfaces

Simplified Power Management：

? Simplified Power Sequence with Full Support for Dual Voltage I/O

? Integrated LDOs Reduces Power Solution Complexity

? Integrated SDIO LDO for Handling Automatic Voltage Transition for SD Interface

? Integrated POR （Power on Reset） Generation Reducing Power Solution Complexity

? Integrated Voltage Supervisor for Safety Monitoring

? Integrated Power Supply Glitch Detector for Detecting Fast Power Supply Transients

Analog/System Integration：

? Integrated USB VBUS Detection

? Fail Safe I/O for DDR RESET

? All I/O Pins Drivers Disabled During Reset to Avoid Bus Conflicts

? Default I/O Pulls Disabled During Reset to Avoid System Conflicts

? Support Dynamic I/O Pinmux Configuration Change

System on Chip （SoC） Architecture：

? Supports Primary Boot from UART， I2C， MCSPI， HyperBus， Parallel NOR Flash， SD or eMMC， USB， PCIe， and Ethernet Interfaces

? 28-nm CMOS Technology

? 23 mm × 23 mm， 0.8-mm Pitch， 784-Pin S-PBGA （ACD）

AM654x和AM652x應用：

? Industrial Programmable Controllers （PLC）

? Factory Automation with Safety Functions

? Multi-Protocol Fieldbus Communications

? Industrial PC

? Industrial Robots

? Human Machine Interface （HMI）

? Grid Infrastructure Protection Relays

? Robotic Motor Drives

圖1. AM654x和AM652x功能框圖

The AM65x GP EVM is a standalone test， development， and evaluation module （EVM） system that lets developers write software and develop hardware for industrial communication-type applications. The GP EVM is equipped with AM6548 processor from TI and a defined set of features to let the user experience industrial communication solutions using serial， Ethernet-based， PCIe， and many other interfaces. Using standard interfaces， the GP EVM can communicate with other processors or systems， and act as a

communication gateway. In addition， the GP EVM can directly operate as a standard remote I/O system or simple sensor connected to an industrial communication network. The embedded emulation logic allows for emulation and debugging using standard development tools such as Code Composer Studio?， from TI， by using the supplied USB cable.

The AM65x GP EVM is a high performance， standalone development platform that enables users to evaluate and develop industrial applications for the Texas Instrument’s K3 System-on-Chip （SoC）。 The AM65x GP EVM supports the following key features：

? Based on the K3 architecture with Arm

? 4-GB DDR4 supporting data rate up to 1600 MT/s

? 16-GB eMMC Flash

? Full size SD card， up to 64-GB density with UHS-1 support （8-GB UHS-1 card supplied with the kit）

? 128-Mbit SPI EEPROM

? 512-Mbit OSPI EEPROM

? 256-Kbit I2C Boot EEPROM

? 3× PRU-ICSSG， supporting multi-protocol industrial Gigabit Ethernet on 2 ports

? Expansion Connectors with two full PRU-ICSSG ports

? 1x MCU Gigabit Ethernet port

? One USB2.0 interface port with Micro AB connector

? CSI-2 connector to interface camera card

? I-PEX EVAFLEX5-VS connector to interface with the LCD adapter card

? GPMC/DSS interface expansion connector

? Application board expansion connector

? SERDES expansion connector to interface two lane PCIe Personality card

? XDS110 on-board emulator

? Quad port UART to USB circuit over microB USB connector

? Expansion headers：

– Two UART

– One SPI

– One I2C

– Four timer signals

? Boot mode selection using DIP switches

? Two push buttons to generate interrupts

? Industrial Ethernet LEDs

? DC Input： 11 V to 28 V

? Status output： LEDs to indicate power status

? INA devices for current monitoring

? Over- and under-voltage protection circuit

? RoHS-compliant design

AM654x系列評估模塊

The AM65x Evaluation Module provides a platform to quickly start evaluation of Sitara? Arm? Cortex?-A53 AM65x Processors （AM6548， AM6546， AM6528， AM6527， AM6526） and accelerate development for HMI， networking， patient monitoring， and other industrial applications. It is a development platform based on the quad core Cortex-A53， dual Cortex-R5F processor that is integrated with ample connectivity such as PCIe， USB 3.0/2.0， Gigabit Ethernet， and more.

AM654x系列評估模塊主要特性：

3 gigabit Ethernet ports

4GB DDR4 with ECC

On-board 16GB eMMC

On-board 512Mb OSPI Flash

1-lane PCIe Gen3.1， USB 3.1， USB 2.0 and CSI-2 interfaces

AM654x系列評估模塊包括：

Assembled EVM

SD card

USB cable

Ethernet cable

Documentation

圖2. TMDX654GPEVM AM65x 評估模塊（EVM）系統外形圖

圖3. TMDX654GPEVM AM65x 評估模塊（EVM）系統架構接口圖

圖4.處理器板外形圖（頂視圖）

圖5.處理器板外形圖（底視圖）

處理器板主要特性：

SoC：

? Based on the K3 architecture with Quad-Core Arm? Cortex?-A53 Microprocessor and Dual-Core Arm

Cortex-R5F Arm

? Heatsink and support for 12-V fan

Memory：

? 4-GB DDR4 supporting data rate up to 1600 MT/s

? 16-GB eMMC Flash which can support HS400 speed of operation

? Full size SD card， up to 64-GB density with UHS-1 support

? 128-Mbit SPI EEPROM

? 512-Mbit OSPI EEPROM

? 256-Kbit I2C EEPROM for Boot

I/O Interface：

? One MCU Gigabit Ethernet port and two Industrial Ethernet ports based on the Gigabit Industrial Communication Subsystem （PRU-ICSS-Gb） paired with Texas Instruments Gigabit Ethernet PHYs

? One USB2.0 interface with Micro AB connector

? CSI-2 connector to interface camera card

Expansion Bus：

? I-PEX EVAFLEX5-VS connector to interface with the LCD adapter card

? GPMC/DSS interface expansion connector for secondary display

? Application connector to expansion application cards

? SERDES expansion connector to support various SERDES modules

Debug：

? XDS110 on-board emulator

? Supports 20-pin JTAG connection from external emulator

? Automatic selection between on-board and external emulator （higher priority）

? Quad port UART to USB circuit over microB USB connector

? Two UART， one SPI， and I2C ports connected to test header for slave testing of the AM65x device

? Four timer signals from Maxwell connected to test header

? Two push buttons to generate Interrupts

Power Supply：

? Wide range DC input： 11 V to 28 V

? Status output： LEDs to indicate power status

? INA devices for current monitoring

? Over- and under-voltage protection circuit

Compliance：

? RoHS-compliant

? REACH-compliant

圖6.處理器板功能框圖

圖7.處理器板電路圖（1）

圖8.處理器板電路圖（2）

圖9.處理器板電路圖（3）

圖10.處理器板電路圖（4）

圖11.處理器板電路圖（5）

圖12.處理器板電路圖（6）

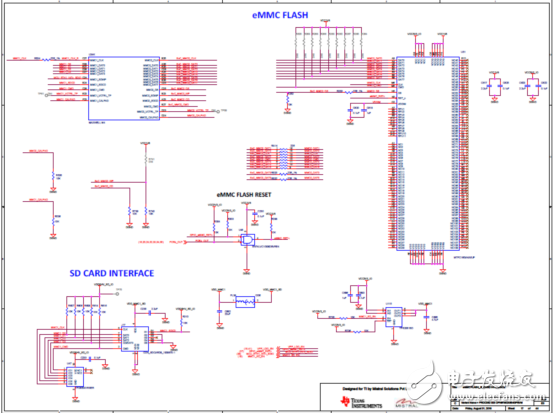

圖13.處理器板電路圖（7）

圖14.處理器板電路圖（8）

圖15.處理器板電路圖（9）

圖16.處理器板電路圖（10）

圖17.處理器板電路圖（11）

圖18.處理器板電路圖（12）

圖19.處理器板電路圖（13）

圖20.處理器板電路圖（14）

圖21.處理器板電路圖（15）

圖22.處理器板電路圖（16）

圖23.處理器板電路圖（17）

圖24.處理器板電路圖（18）

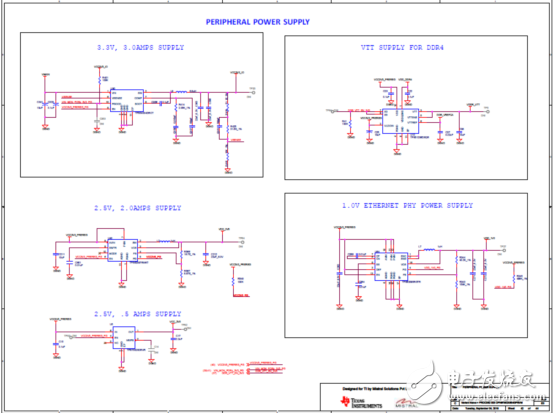

圖25.處理器板電路圖（19）

圖26.處理器板電路圖（20）

圖27.處理器板電路圖（21）

圖28.處理器板電路圖（22）

圖29.處理器板電路圖（23）

圖30.處理器板電路圖（24）

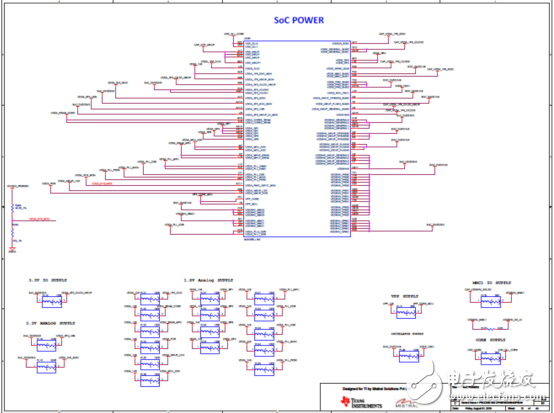

圖31.處理器板電路圖（25）

圖32.處理器板電路圖（26）

圖33.處理器板電路圖（27）

圖34.處理器板電路圖（28）

圖35.處理器板電路圖（29）

圖36.處理器板電路圖（30）

圖37.處理器板電路圖（31）

圖38.處理器板電路圖（32）

圖39.處理器板電路圖（33）

圖40.處理器板電路圖（34）

圖41.處理器板電路圖（35）

圖42.處理器板電路圖（36）

圖43.處理器板電路圖（37）

圖44.處理器板電路圖（38）

圖45.處理器板電路圖（39）

圖46.處理器板電路圖（40）

圖47.處理器板電路圖（41）

圖48.處理器板電路圖（42）

圖49.處理器板PCB設計圖（1）

圖50.處理器板PCB設計圖（2）

圖51.處理器板PCB設計圖（3）

圖52.處理器板PCB設計圖（4）

圖53.處理器板PCB設計圖（5）

圖54.處理器板PCB設計圖（6）

圖55.處理器板PCB設計圖（7）

圖56.處理器板PCB設計圖（8）

圖57.處理器板PCB設計圖（9）

圖58.處理器板PCB設計圖（10）

圖59.處理器板PCB設計圖（11）

圖60.處理器板PCB設計圖（12）

圖61.處理器板PCB設計圖（13）

圖62.處理器板PCB設計圖（14）

圖63.處理器板PCB設計圖（15）

圖64.處理器板PCB設計圖（16）

圖65.處理器板PCB設計圖（17）

圖66.處理器板PCB設計圖（18）

圖67.處理器板PCB設計圖（19）

圖68.處理器板PCB設計圖（20）

圖69.處理器板PCB設計圖（21）

圖70.處理器板PCB設計圖（22）
