Cree宣布推出XLamp CXA2520及CXA2530照明級白光LED

Cree宣布推出XLamp CXA2520及CXA2530照明級白光LED。XLamp CXA2520與CXA2530跟CXA15xx都屬COB系列，只是封裝略大，而亮度和功率亦有所不同。CXA2520的輸出功率約20W，而CXA2530的輸出稍大、約為30W。

CXA25xx系列有EasyWhite白光系列及ANSI白光系列，色溫范圍由2，700K至5，000K，以4階或2階MacAdam橢圓分bin，有最低80-CRI或90-CRI可選，封裝尺寸是24mm x 24mm。

它們的優點是單一光源、能減低整體價格、降低系統設計的復雜性。

CXA25xx系列白光LED特別適用于PAR燈、筒燈及景觀照明等。

CXA2520特點：

EasyWhite白光系列及ANSI白光系列（色溫2，700K – 5，000K）

典型正向電壓36V @550mA， 85℃

最大驅動電流1250mA

可視發光角度115°

低熱阻0.8℃/W

白光分級于Tj=85℃測量

有標準CRI和最低80-CRI及90-CRI可選

熱、電分離

封裝尺寸24mm x 24mm

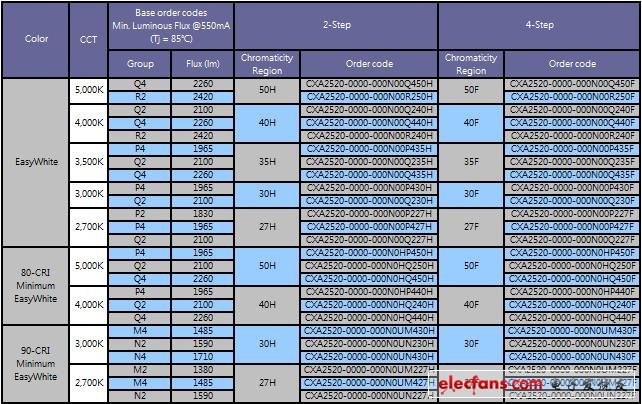

產品規格：

XLamp CXA2520 White

XLamp CXA2520 EasyWhite
